Alrighty last post and we're finally up to date. Smoothing the frame rails. I started on this ages ago (welding wise) but didn't follow it through. First bay job after the upper rad support was to be this.

All holes were welded up bar one at the rear passenger side that holds a brake line, and another at the front of the driver's side that I cut to run the power steering feed line through.



Since the rails are more or less flat out of the factory, a few skim coats of filler followed with long hits with an orbital sander were all that was necessary.

Next up was making space for the new cooling system. After a serious amount of measuring, research and deliberation I worked out a complete set up that will fit my goals of neat, efficient and tucked away out of sight. I initially thoroughly looked into and mapped out a v-mounted system. Unfortunately, as much as I love them to death I just can't bring myself to take the gamble of making one without knowing if it'll function effectively with my front end and body styling. I'm not willing to change to a reverse vented hood to allow the intercooler to vent through, and as reasonably confident as I am that the system can be made effective without that (and one or two other things), it's not worth investing in when the alternative I measured up is a still very neatly laid out guaranteed win.

Anyway. The first step was cutting out some room for the new components.



The old support was bowed from the previous owner. It was very bulky and took up a lot of space where the new radiator is going. As a final nail in the coffin, cleaning up the factory unit was way more work than simply replacing it. So it made sense to just cut the fucker out, relocate in a new one and kill three birds with one stone.

Unfortunately I couldn't just lop a section out of the rad support for more radiator clearance due to the following;



Crappy pic sorry but as you can see, the proposed new rad location just under the bonnet latch lands dead on the caster rod bracket mounting bolts. Okay, new support is getting shifted forward.

The first step for this was working out a solution for the caster rod mounting brackets. Knowing they are about twice as long I picked up some S13 units, thinking they'd bolt up. Here's a side by side;



Unfortunately, no bueno on the frame flange.



After a bit of fettling I realised not only is the bolt pattern different, but the whole design is too. Even if the Z32 pattern was adapted over the S13 units they'd still foul on the frame rail itself. Alright, time to Frankenstein.

Both brackets lopped in half and mated up, with one misguided extra cut;



There was a lesson learned in this job... the function of a jig. Keeping things straight while being welded. Ask me how I know...

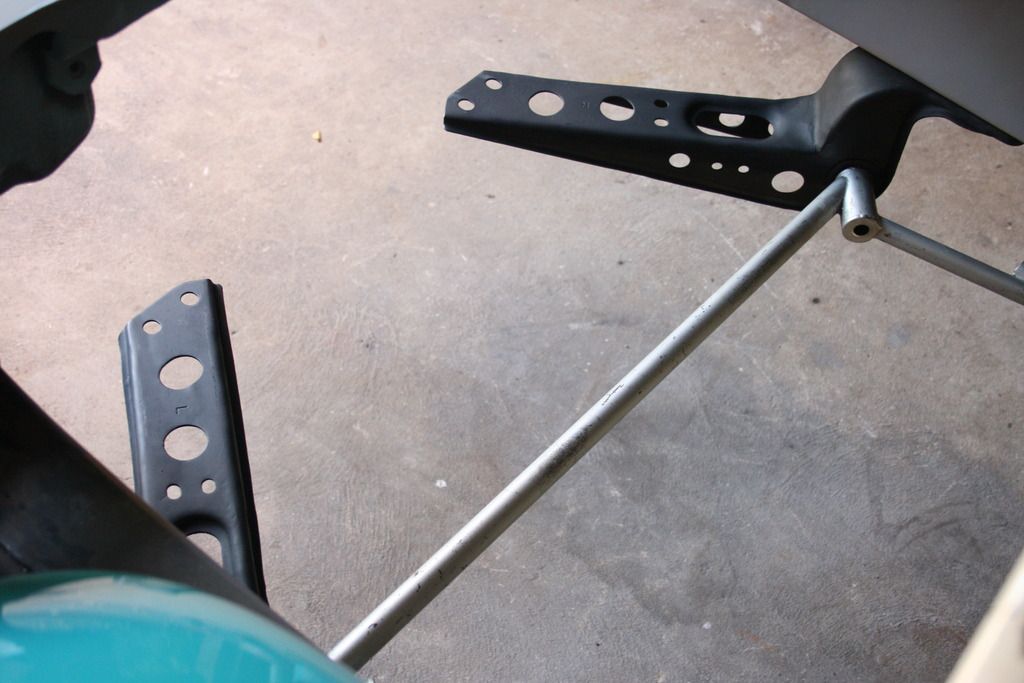

Cleaned up and temporarily rust proofed with some matte black. As these will be visible from above with the finished bay, they'll later on be powder coated along with the tension rod brace and sway bar.



Quick shot of the gussets that'll be getting welded onto the underside for extra strength. They're not attached yet because the brackets will be modified further to house the radiator and to do so I'll need access to the underside.



Bolted up, looking good next step will be to modify these further to receive the radiator, which will be custom built and sit on the brackets.





Lastly, something else came in.



It's a second hand after market fender for a cruiser with a 12" rear tyre (think this). And after being split in half right down the centre and a lot of welding it will become my front tubs.





As you can see there'll be a good amount of extension carried out on either side but it should turn out well. Next job once the caster rod brackets and new radiator support are done.
