Volvo 242 Turbo, 16v turbo, widebody, Rota wheels++

[volvo242]

got most of the parts back from powderpaint today getting the last few tomorrow!

very hard color to get good pics of o.O they look so flat!







started cutting out the dash to the rollcage etc. more pics tomorrow!



hadd help of a friend that cut out the carbon plates just one left to do and its rollcage-time

[nsfwaldo]

sweet jesus.. this is amazing. Im in

[volvo242]

[AdreView]

volvo242....is there anything you CAN'T do?

[volvo242]

volvo242....is there anything you CAN'T do?

finish the damn car it seems ;P

nah, lots i cant do.. but i have a few good friends to cover that part

[volvo242]

got my stuff from Summit today!



AN couplings and hoses for the drysump and fuel

also this





also the NOS bottle got the hot red color (powderpaint)





damn i like that color...

we also made a trottle pedal today! didnt figure out a good way to make a pedal so we ended up copying the clutch pedal from the tilton pedalbox



going to fix it up and paint it matte black tomorrow

[volvo242]

more pics!

made more parts for the trottle pedal



Stock vs Nascar brakes ;P





Made the brackets, and re-drilled to correct bolt pattern etc





Started making AN hoses










35 cm of cooling, hope its enough ;P







with a flex-a-lite Fan that blows quite a lot!!



Thats all for today!

[volvo242]

Finished for the day! 12 hours of work

done lots of stuff. but as ususal, i work and forget to take pics...

Custom coil cover in carbon, with carbon rods over the coils to push them down. in other words, that cover is STIFF ;P



Painted the Intercooler, dont want that shiny thing behinde the grill ;P
Also made a carbon cover to give it a better look, and to stopp the fan from drawing air around the intercooler.


Dash, and wiring is staring to come together

[volvo242]

power to the people ;P
fuelpumps, lights, fans, waterpump etc is alive

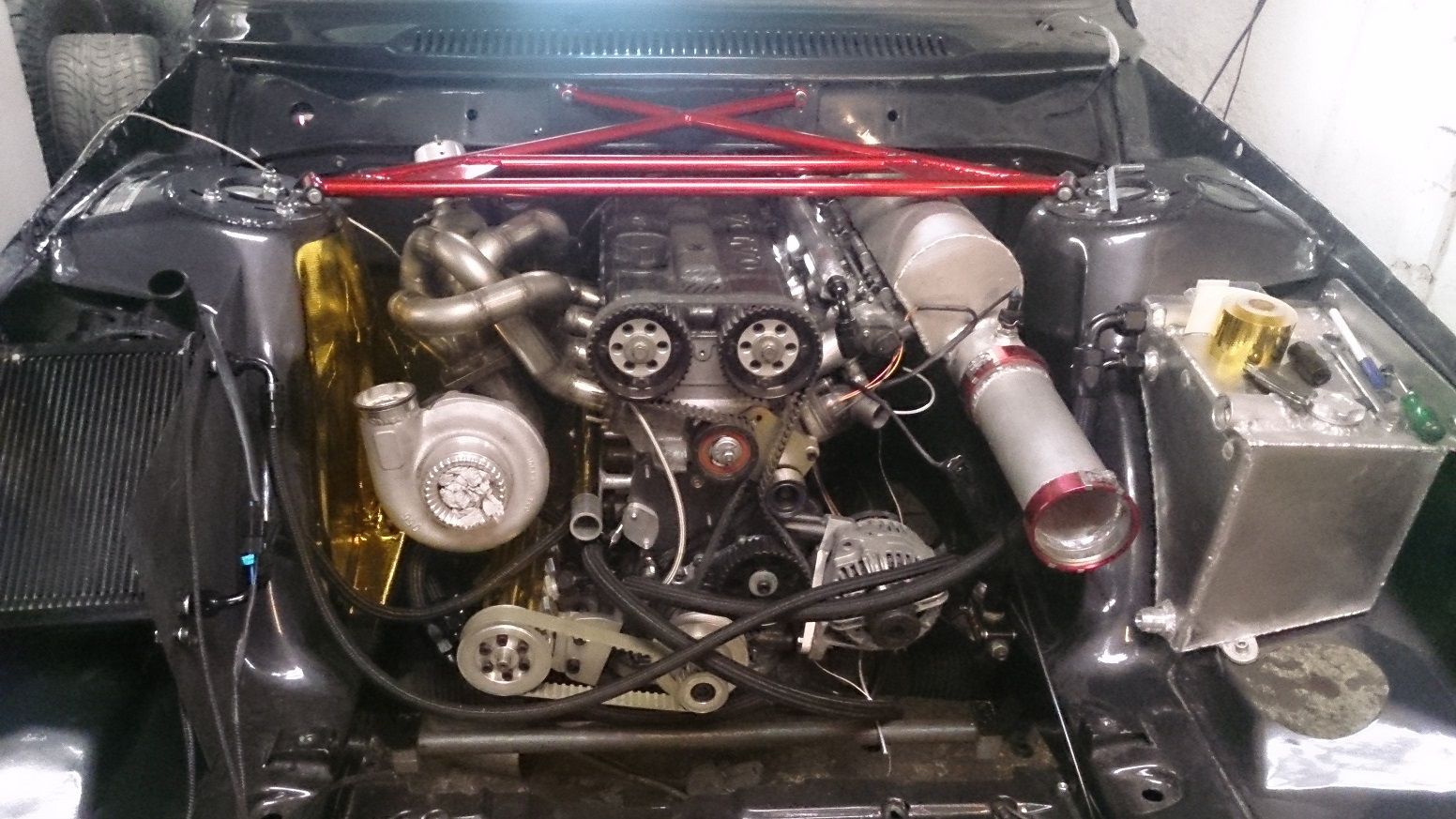

Also most of the hoses for the dry sump is finished, just 1 left to do (didnt have the fitting) so now the turbo and manifold is going in, and aint coming back out again

[MattHatCat]

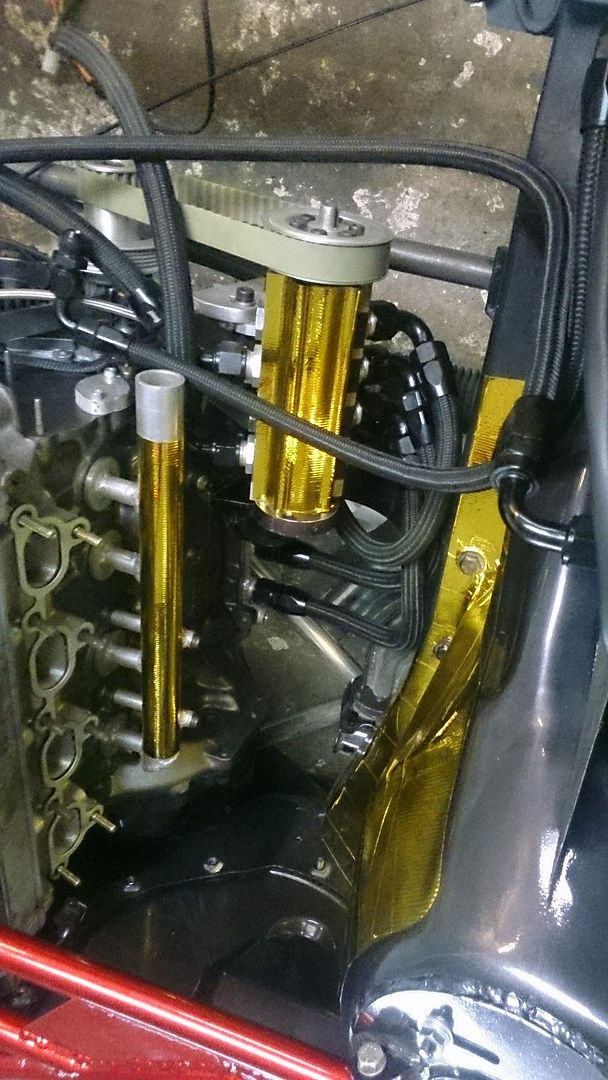

I love gold heat shielding.
that is all.

[RattyCabby]

Box fenders AND flares!!! :beer:

[volvo242]

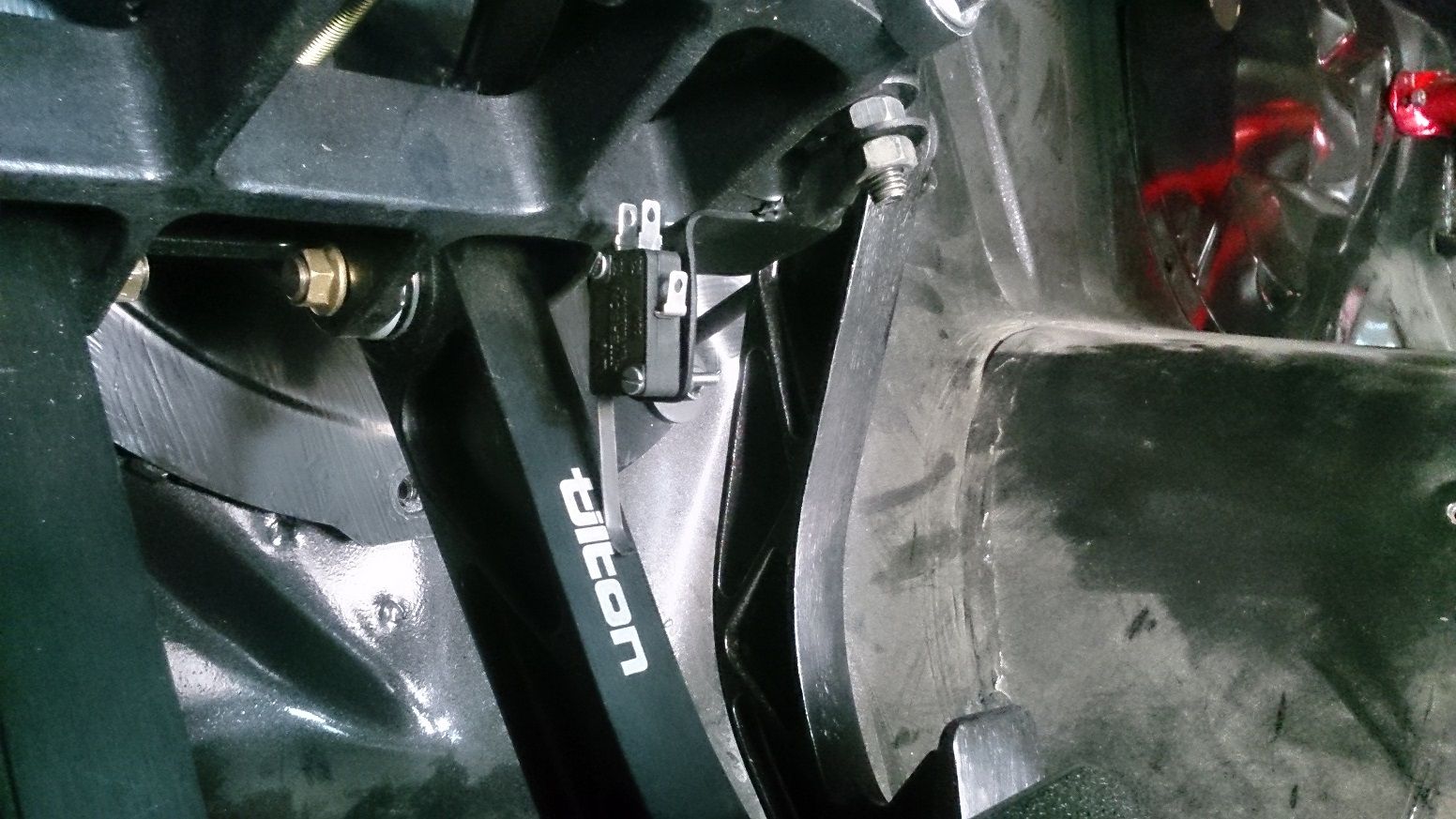

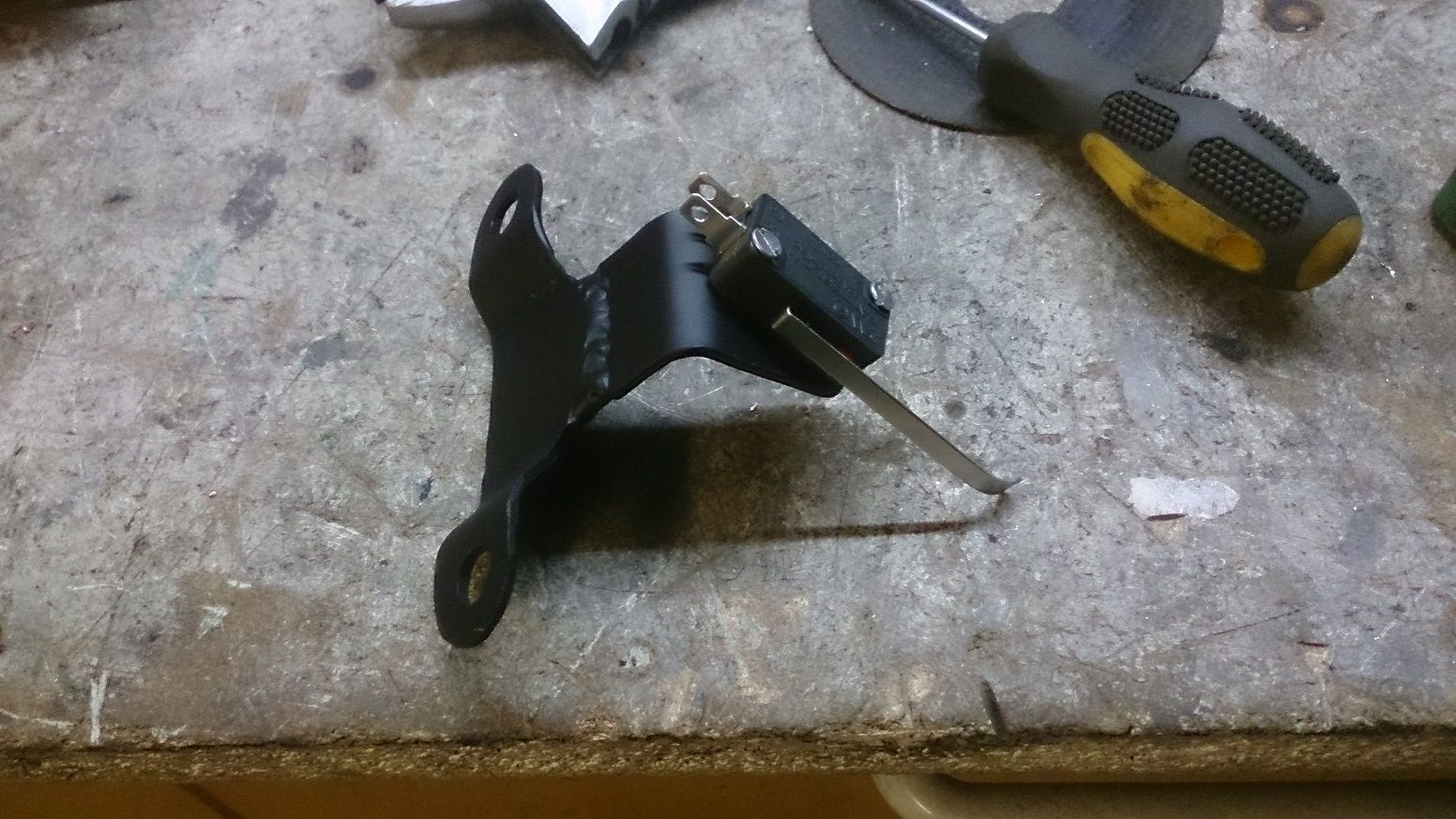

brake late switch

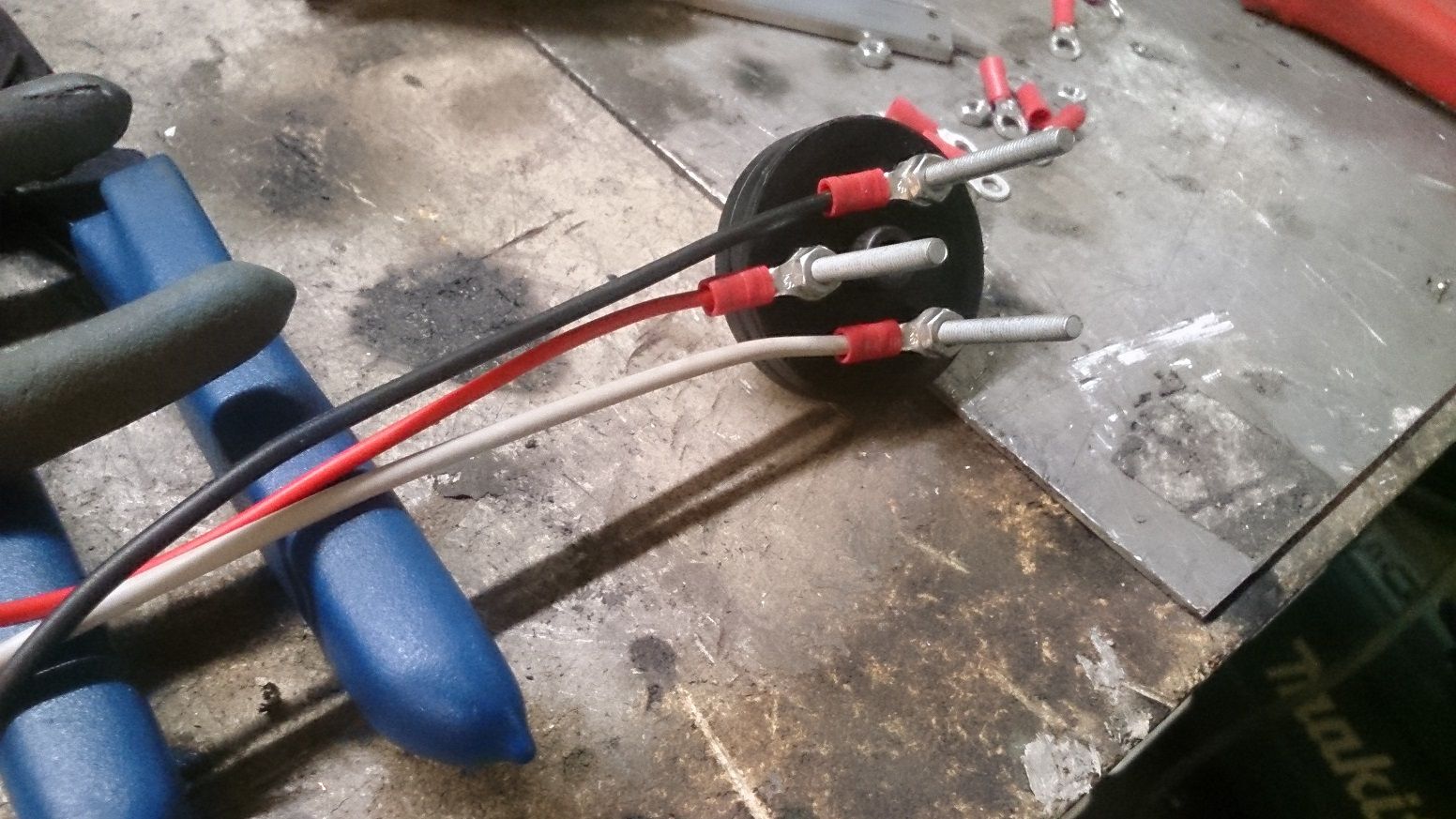

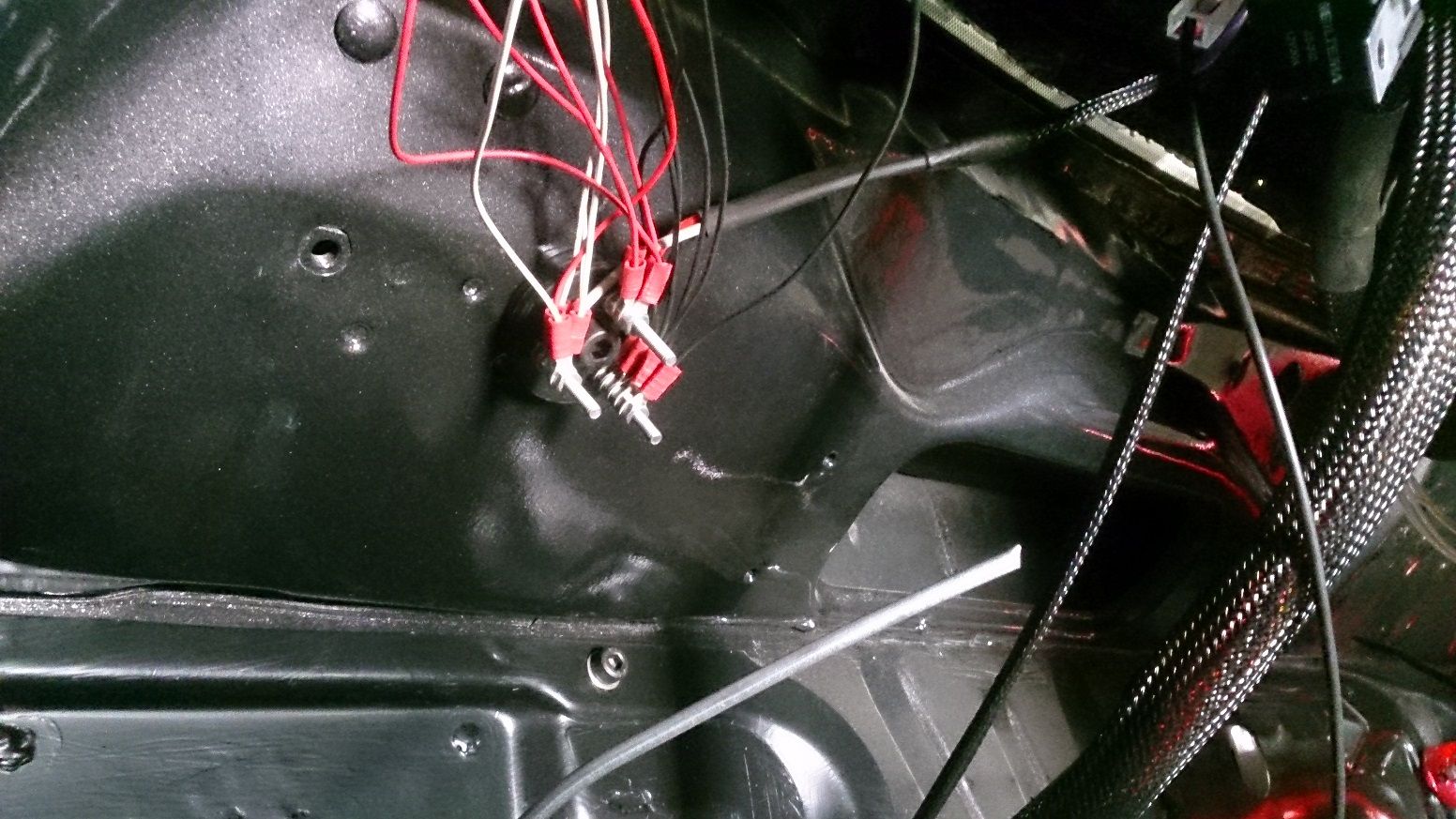

made a thingy to connect all the gauges etc to, dont want to solder everything together.. and this also makes it easy to add / alter / remove stuff later!

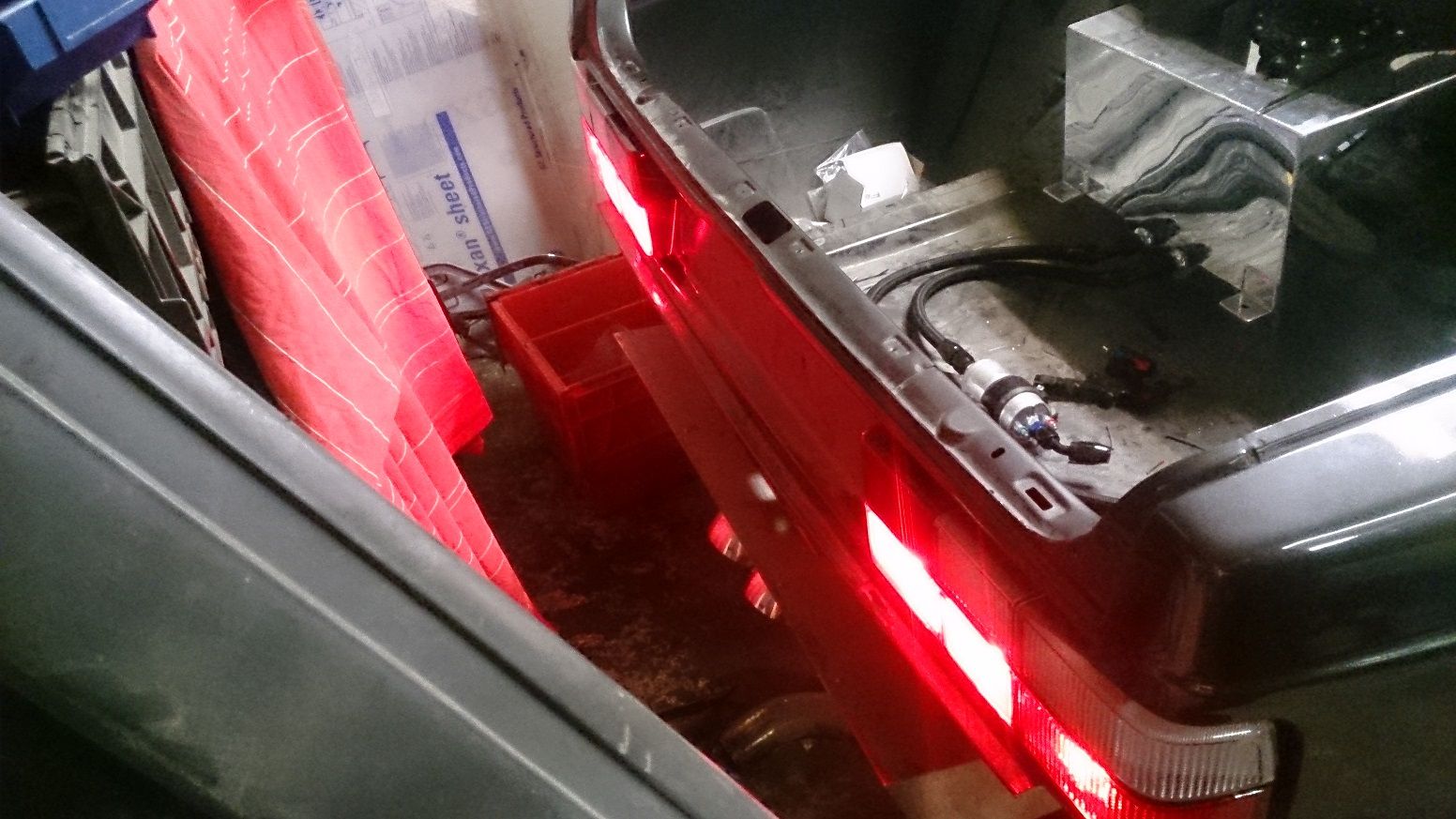

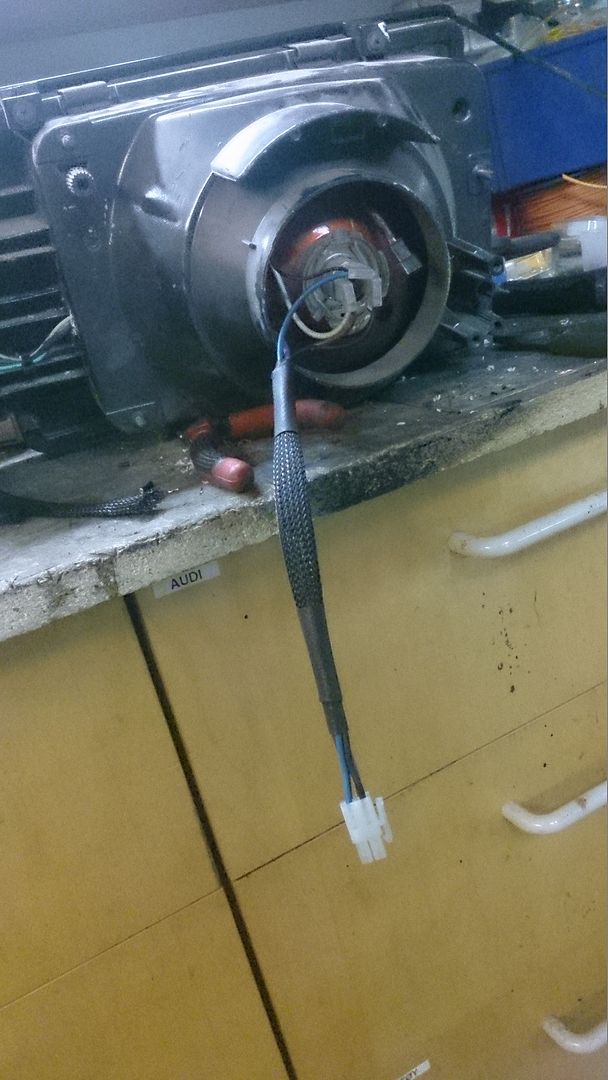

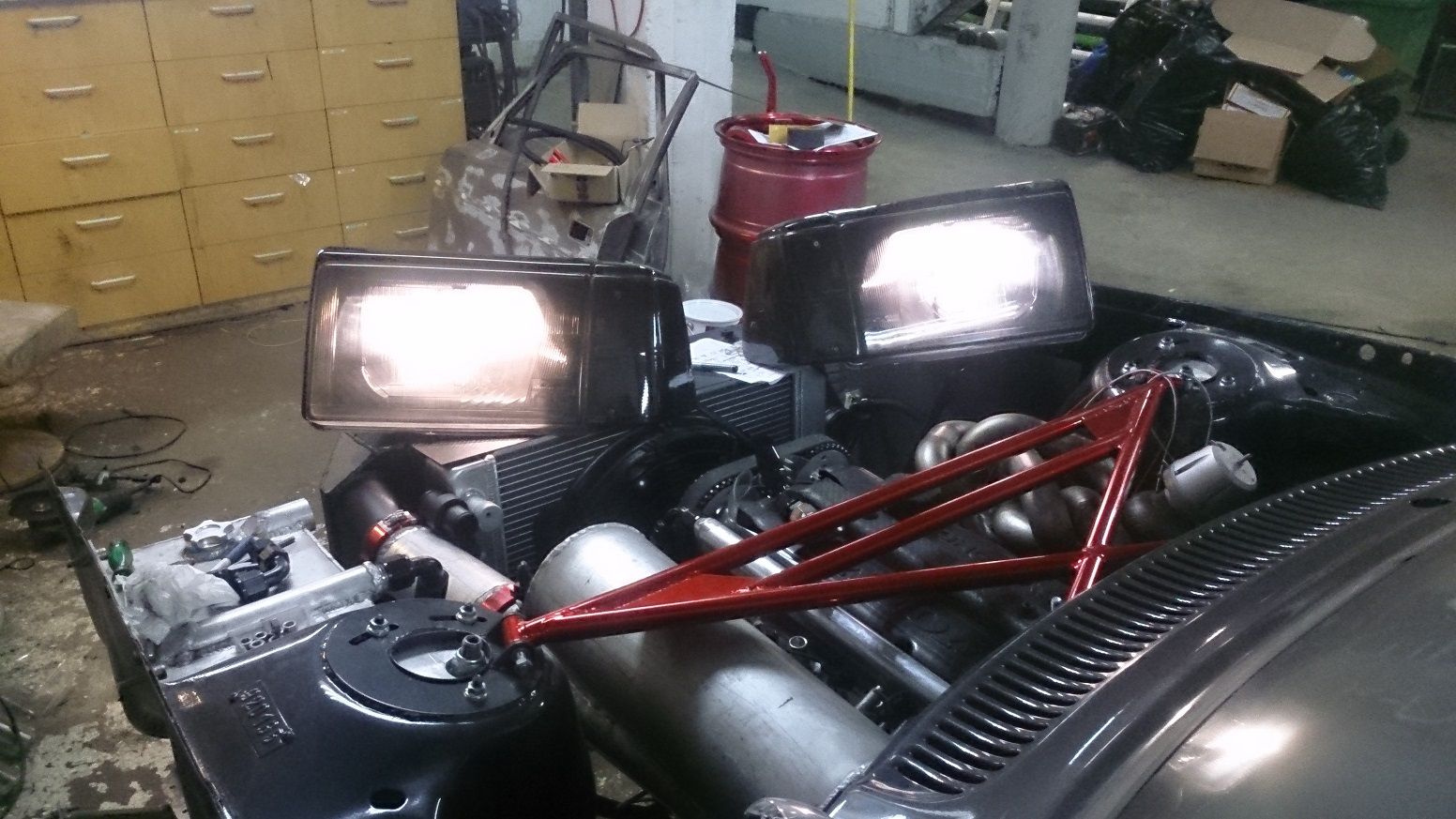

3 driving lights on each side ofcourse looks better

[volvo242]

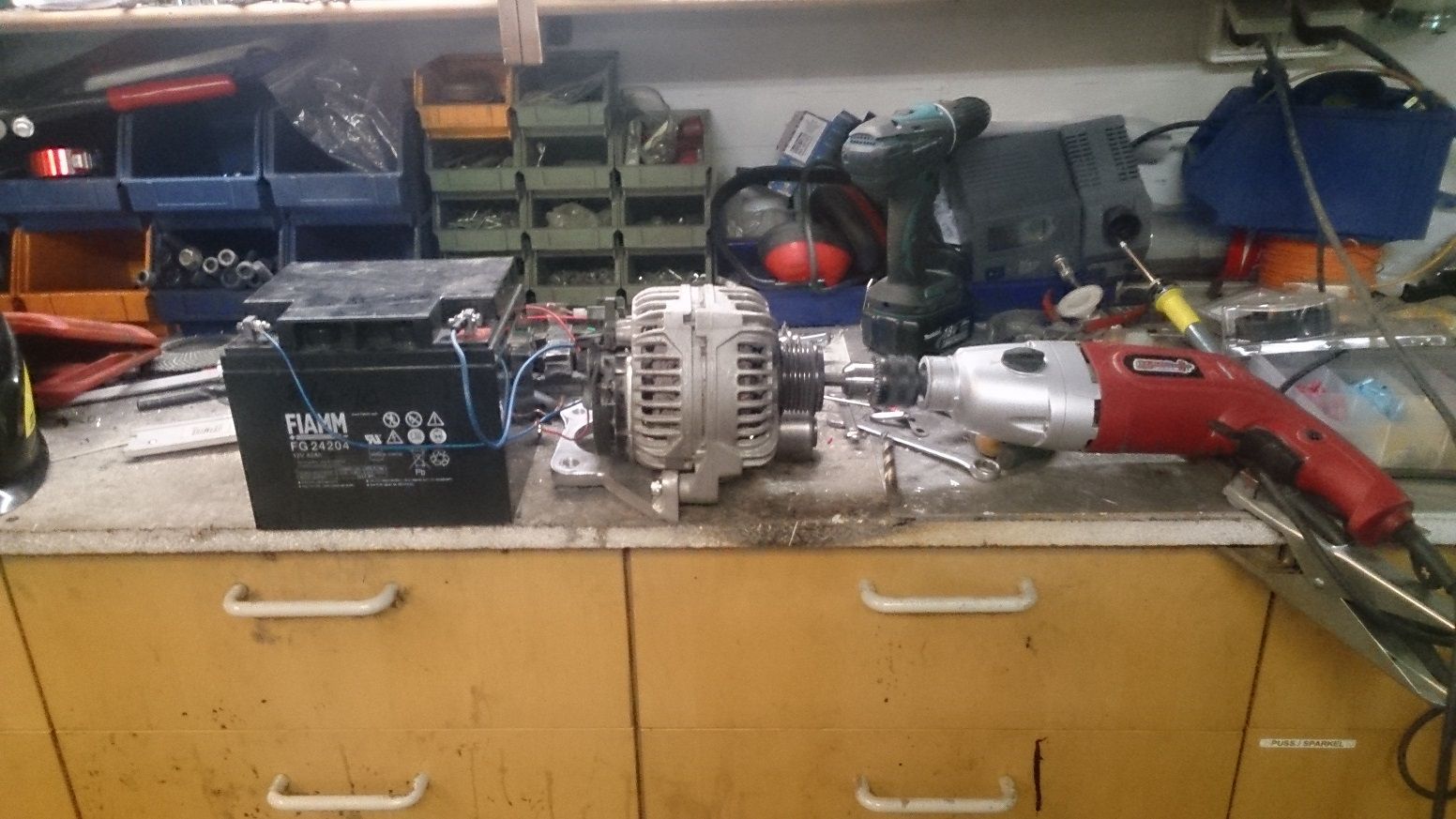

testing the dynamo! it works ;P
140 amp from a v70r

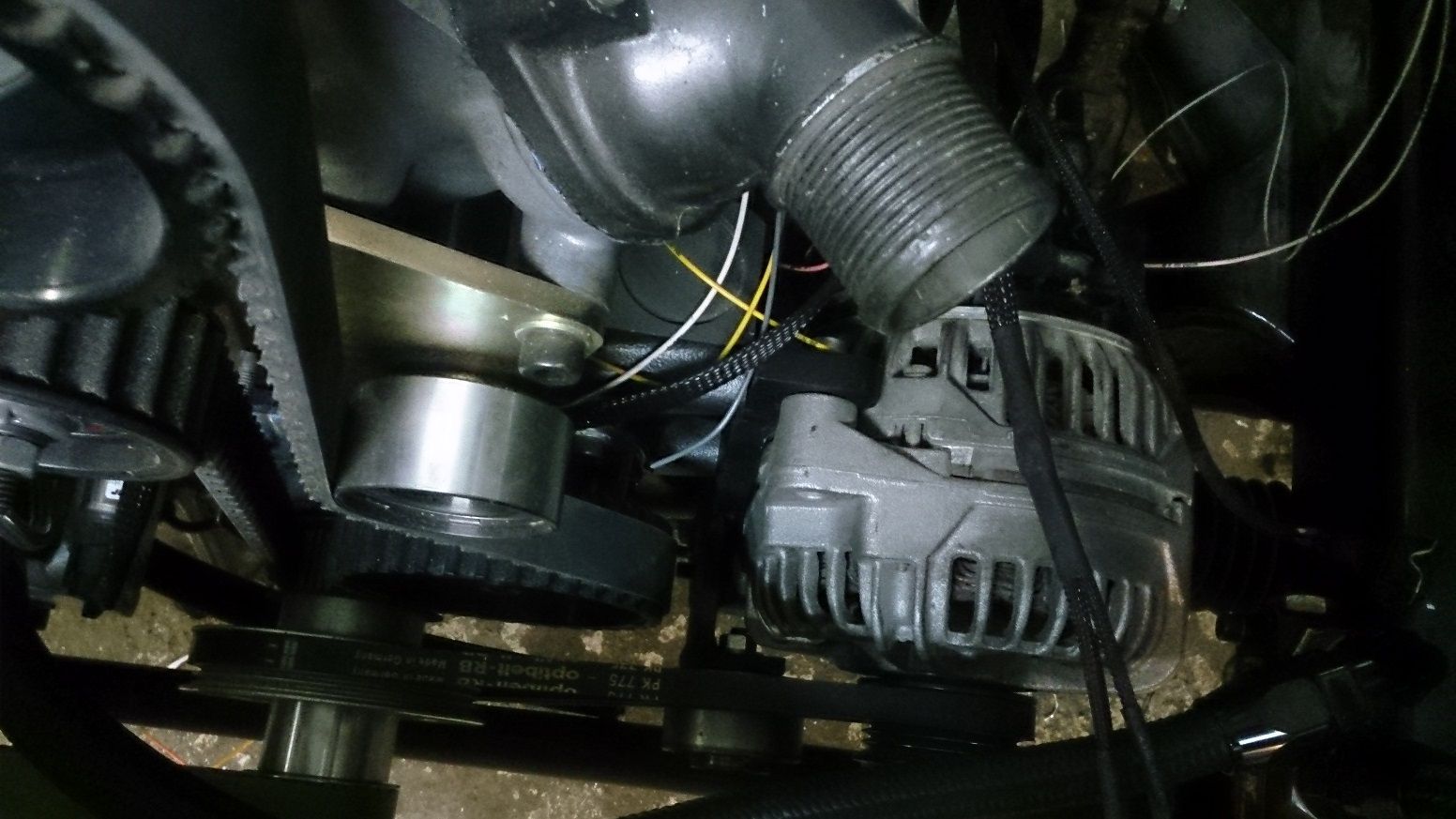

also made a belt tensioner, and painted stuff black

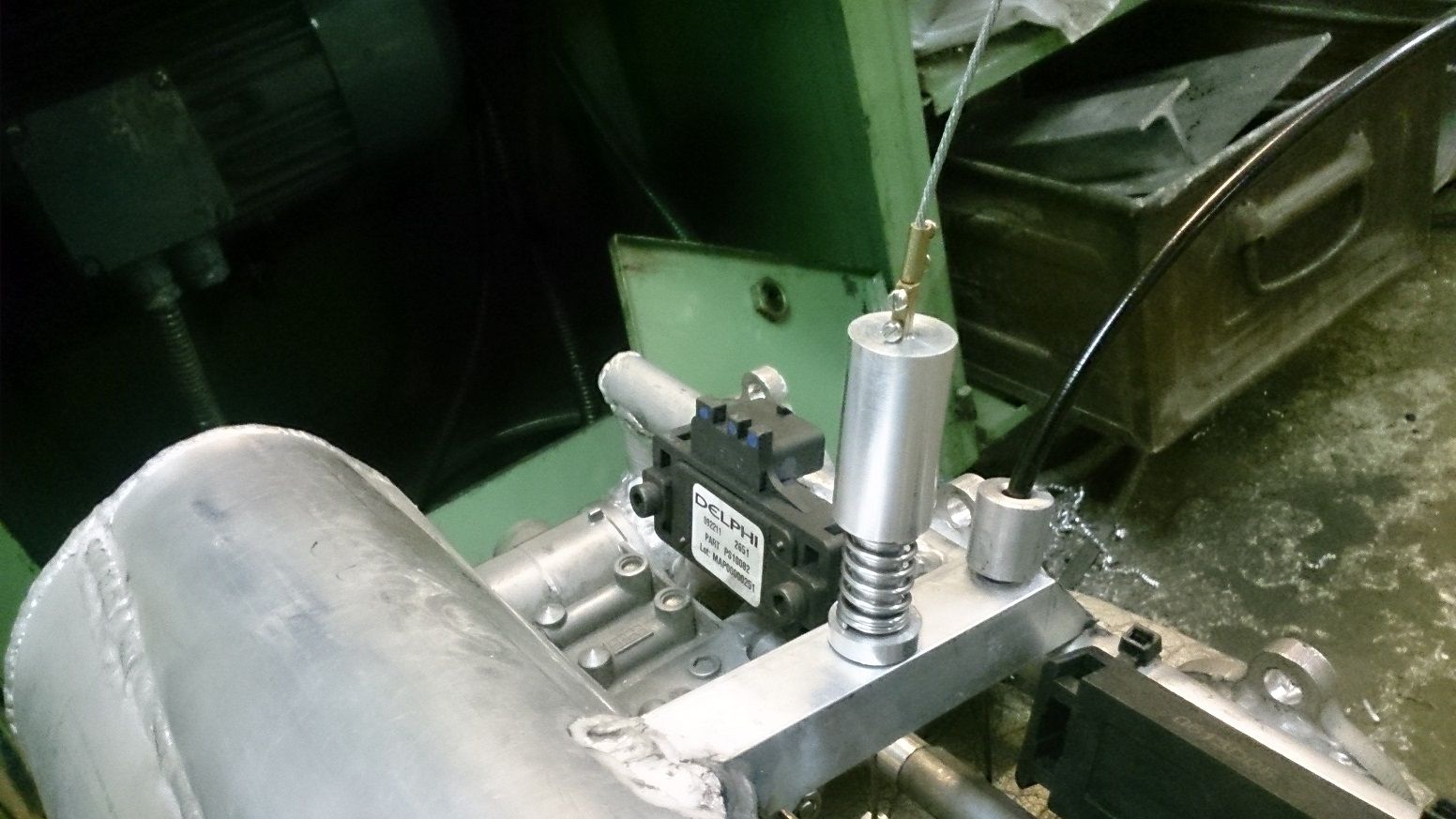

had to modify the intake again.. the springs that shuts the throttle "plates" is to weak. they are made for a bike so i had to add a extra spring to give the pedal some feel ;P

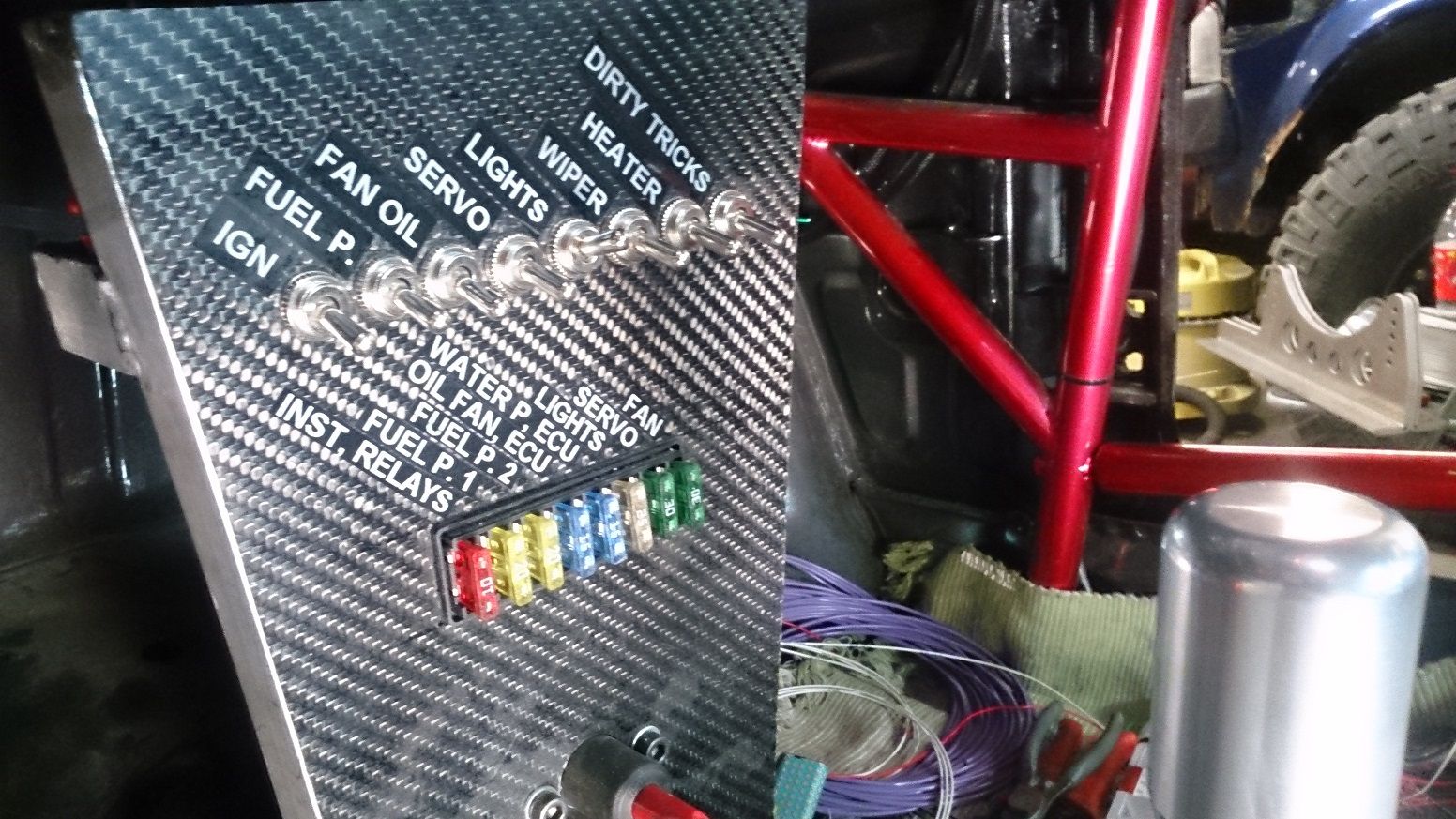

most of the electric is finished so i printed some labels

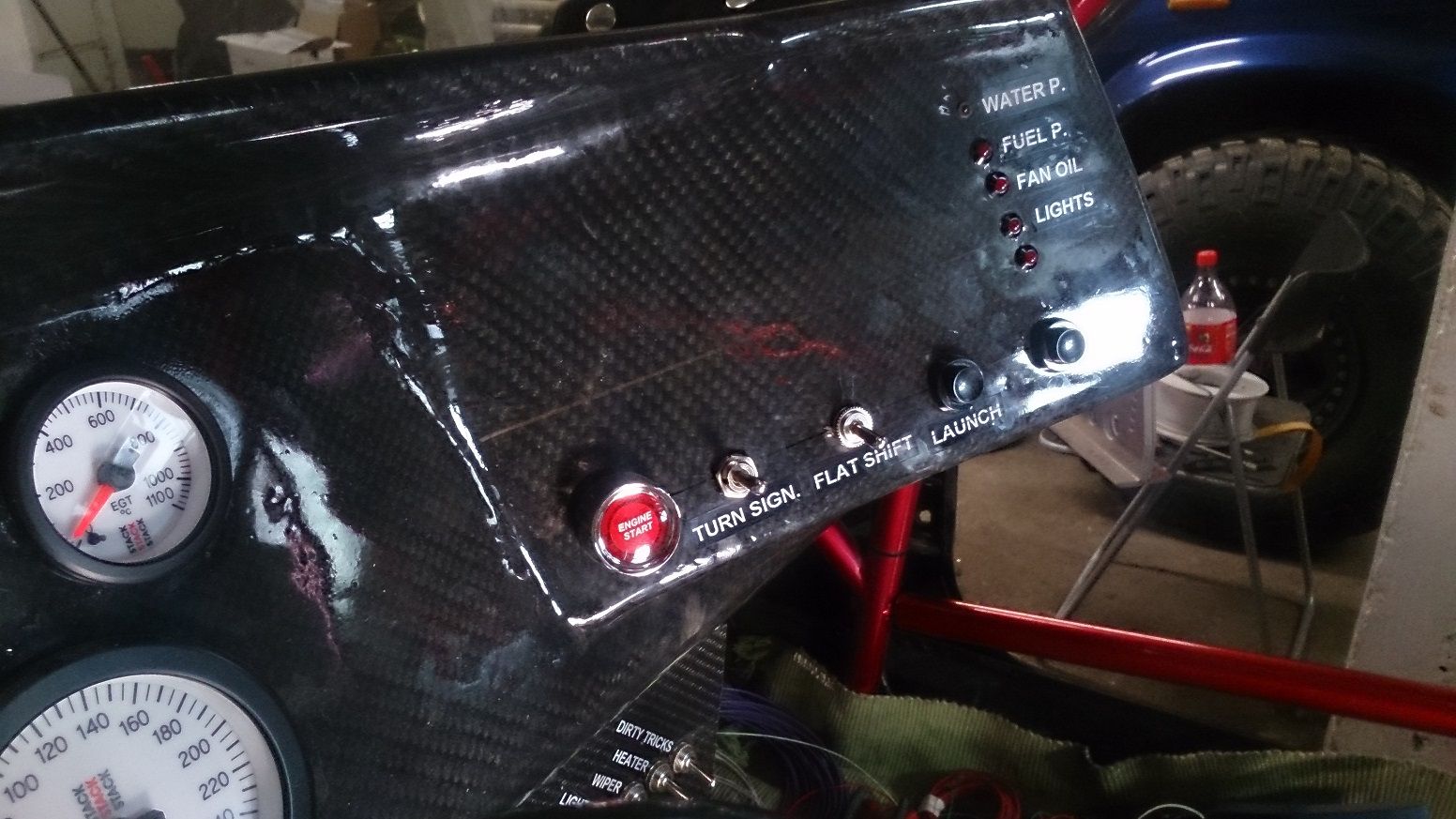

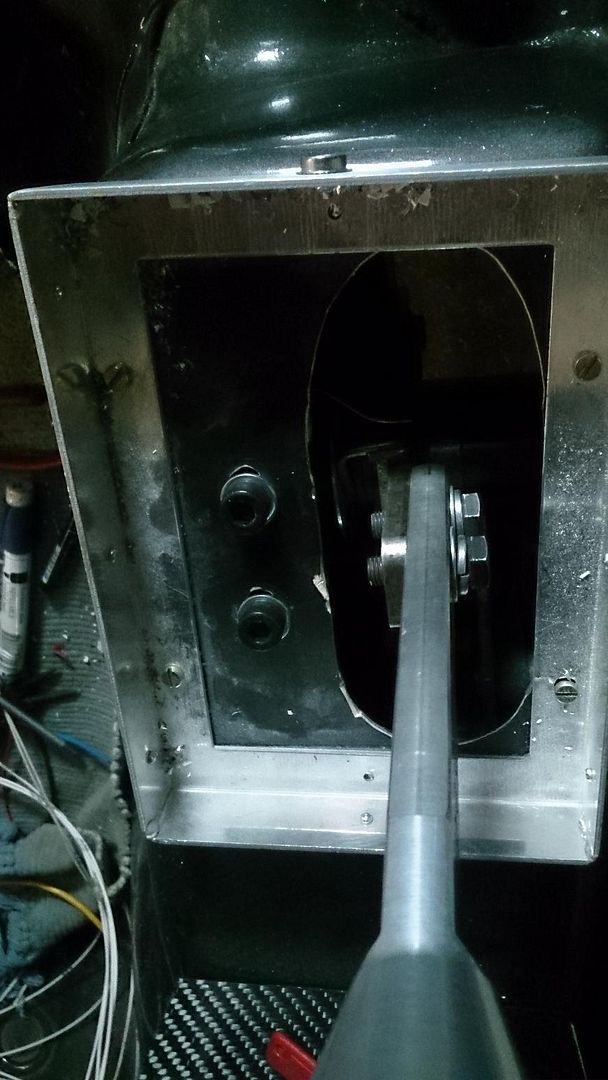

switch for the Flatshift controll is in, wired to the ecu and gives a short engine cut when i change up!



hoping to get the rest of the parts painted soon

[MattHatCat]

Looking great

[volvo242]

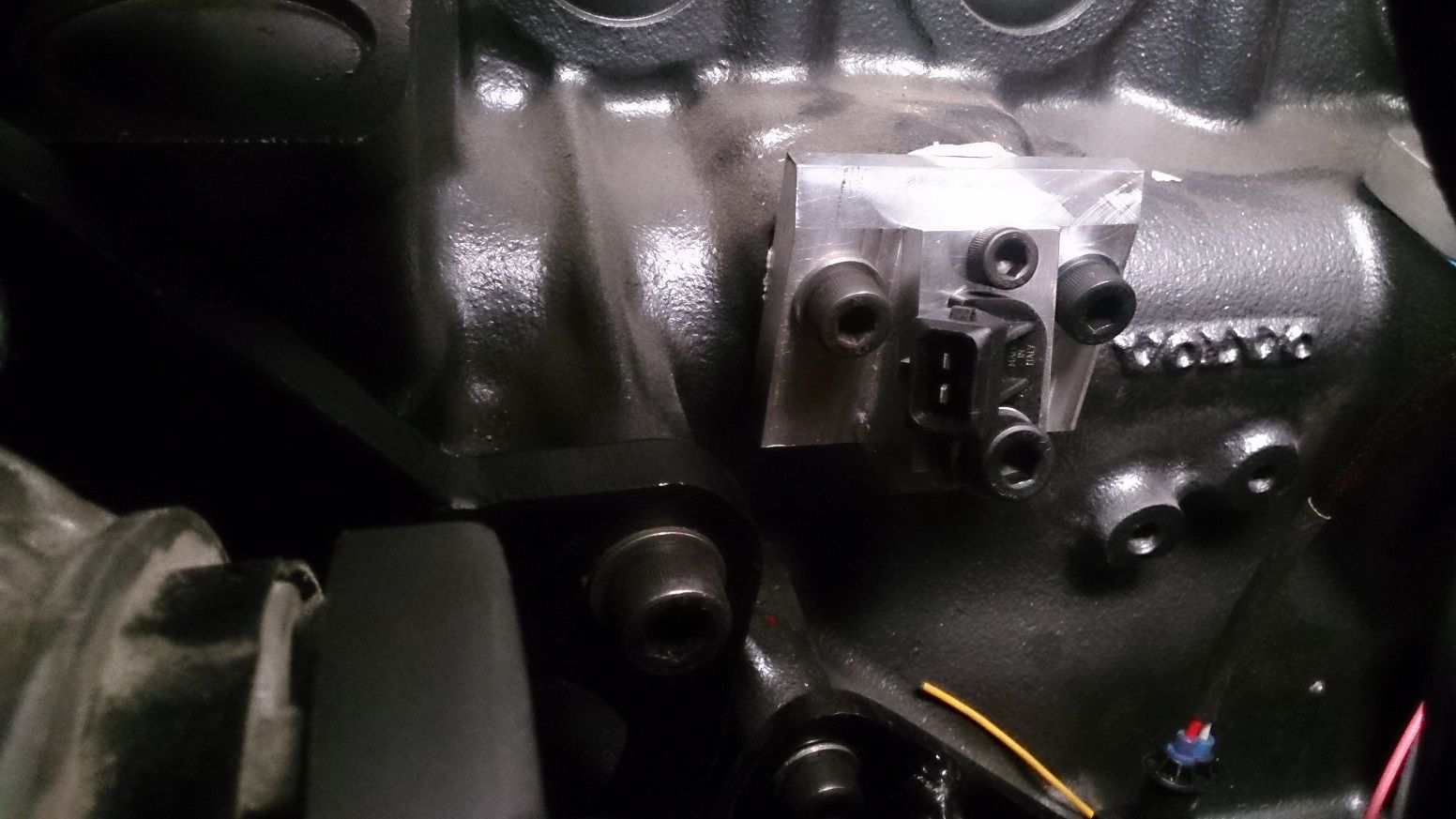

"cam" sensor in place! had a friend make the bracket to hold it in place, and also sealing it (o-rings)

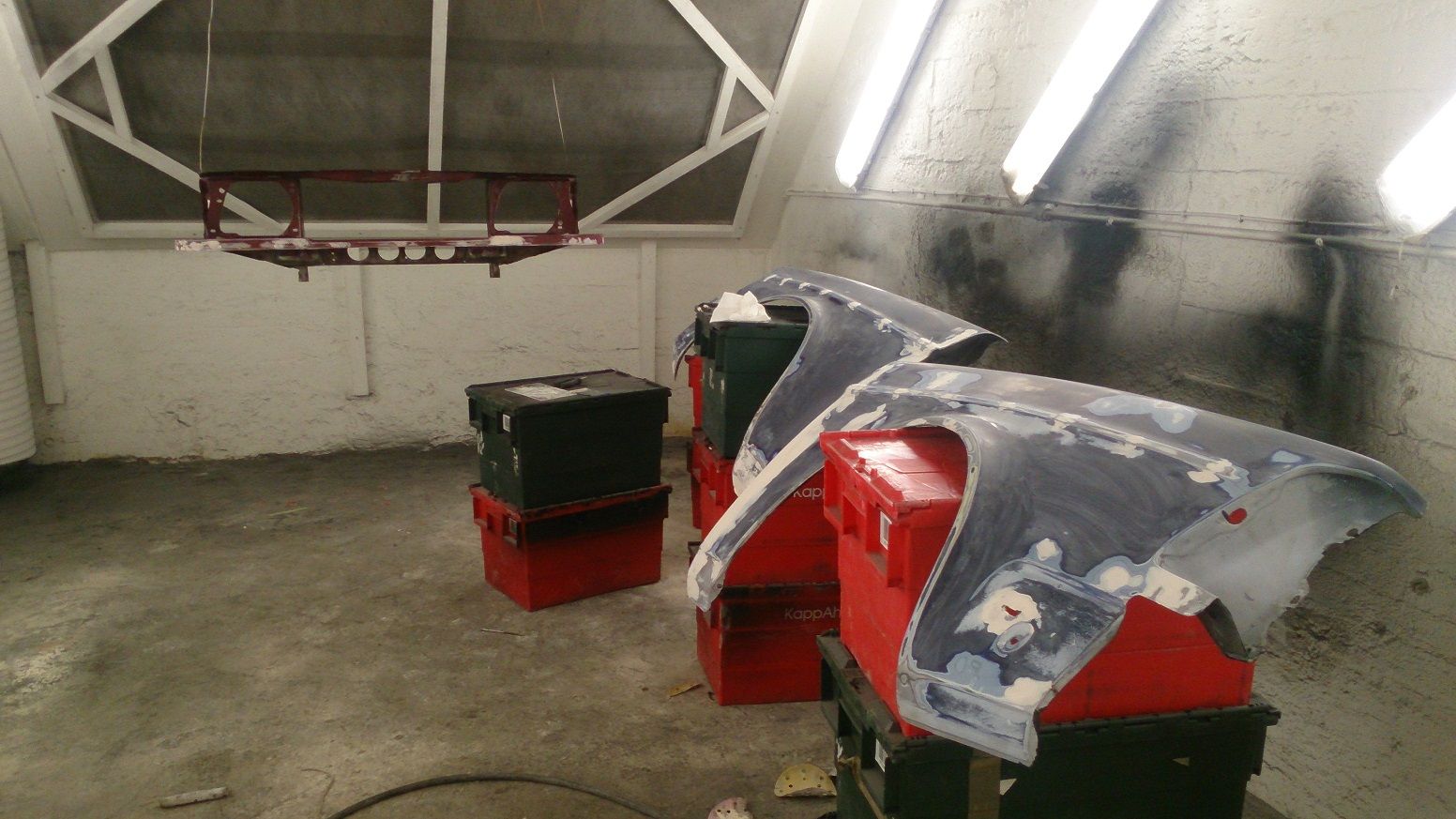

tierd of waiting for the dude thats supose to paint the last parts on the car.. so today i started myself ;P
